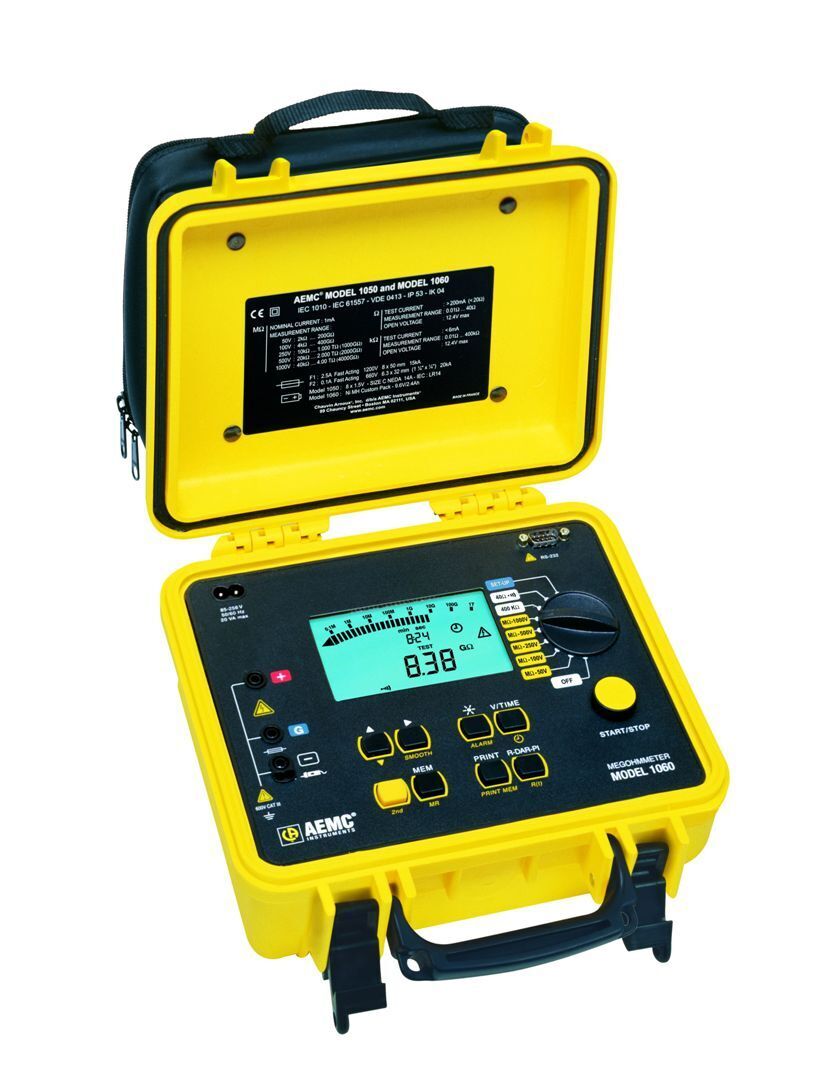

The AEMC 1060 Insulation Resistance Tester is an industrial quality, fully automated 1000V insulation tester, which can be used in conjunction with a PC and controlled remotely. It provides insulation measurements to 4000GΩ (4TΩ). Test results include DAR, PI, capacitance, voltage measurement and duration of test.

The Model 1060 has an RS-232 interface and an extensive memory function, which permits storage results in files specific to a sample. A standard software package (DataView®) included with the Model 1060 enables the user to display test results and graphs.

The Model 1060 can also be fully programmed and controlled by a PC. Automatic report generation of test results is quick and easy via direct connection to a printer or through a PC.

Features:

  • True Megohmmeter®
  • Test voltage combinations of 50V, 100V, 250V, 500V and 1000V
  • Insulation measurement to 4000GΩ (4TΩ )
  • Direct measurement of DAR and PI values
  • Direct measurement of sample Capacitance
  • Display of test voltage and run time
  • Programmable test run times and PI times
  • Smooth and Alarm functions
  • Automatic test inhibition if live sample >25V
  • Automatic discharge after use with voltage display
  • Large dual display with time, voltage and measurement
  • Bright blue electroluminescent backlight
  • Remote operation with optional test probe
  • Rugged, dual wall, weatherproof field case with detachable lead/accessory pouch
  • AC rechargeable NiMH batteries
  • RS-232 interface for direct printing of results
  • Remote operation through PC
  • Includes software to configure instrument and generate reports.

Applications:

  • Test insulation on cables, transformers, motors and wiring installations
  • High resistance or absorption tests
  • Spot reading tests
  • Timed resistance measurements
  • Dielectric (DAR) and polarization (PI) tests
  • Low insulation test range for testing old or flooded installations
  • Motor insulation resistance measurements
  • Continuity checks and low resistance measurements
  • Computer controlled production line testing
  • Predictive maintenance by storing results in PC for trend analysis
