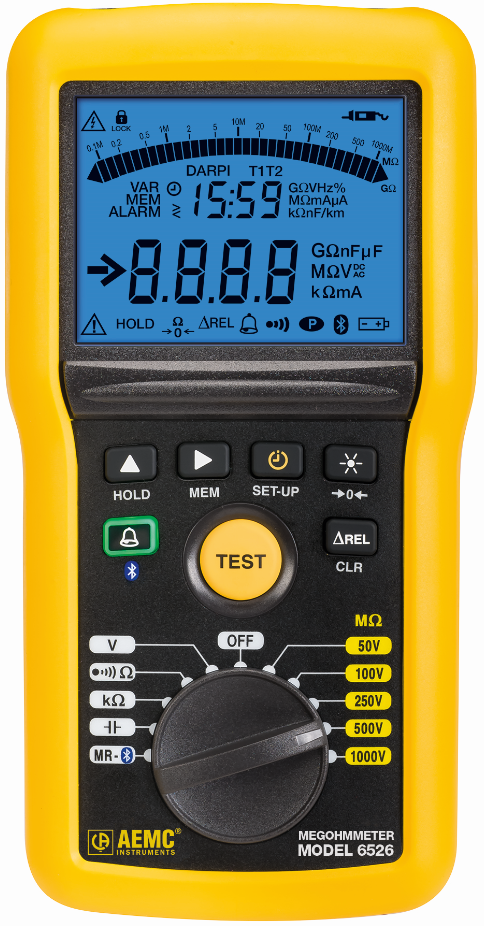

The AEMC 6526 megohmmeter is a handheld, battery powered, multi-function 1000V digital insulation resistance tester. It is designed to measure Insulation Resistance, Continuity, Resistance, Capacitance, Frequency and Voltage. With a safety rating of 600V CAT IV and IP 54, the AEMC 6526 performs insulation resistance at either 50, 100, 250, 500 or 1000V and is able to measure insulation resistance values up to 200GΩ.

The 6526 also incorporates a 700V AC & DC True RMS voltmeter and continuity testing with a selectable 20mA or 200mA test current. Additionally, the AEMC 6526 includes a Timer and Lock function which allows the user to operate the unit hands free, and an automatic safety check protects both the user and the meter with audiovisual signals and test inhibition when >25V is present on the test sample. DAR, PI, Alarms and backlit Pass/Fail test functions are standard, and a large digital/analogue LCD multi-function display provides clear and easy readings enhanced by a bright blue electroluminescent backlight.

A magnetic stand can hold the meter to a metal surface or cabinet during the test, and an optional Remote Test Probe accessory with flashlight simplifies repetitive testing and helps access hard-to-reach, poorly lit, test areas. With the possibility to save up to 1300 tests in the memory and Bluetooth communication with DataView software, the AEMC 6526 will work well in industrial environments where a wide range of test voltages, up to 1000V, are required.

Features:

• True Megohmmeter®
• 1 kV Insulation and Multi-Function Tester (Resistance, Capacitance, Continuity, Frequency and Voltage)
• 50V, 100V, 250V, 500V and 1000V Insulation Test Voltages
• 200GΩ Max Insulation Resistance
• DAR and PI ratios calculated
• Timed Test Mode up to 40 minutes for Insulation Resistance Test
• Test Lock feature for hands free timed measurements up to 15 minutes
• Continuity tests at 20mA or 200mA
• Test lead resistance compensation for accurate low resistance measurements
• True RMS AC/DC Voltmeter up to 700V
• Ohmmeter to 1000kO
• Capacitance to 10µf
• Frequency measurements from 15 to 800Hz
• Auto discharge after Insulation Test
• Hold function to "freeze" readings
• Large and bright dual display with blue backlight
• Pass/Fail indicator with green/red backlight
• Auto Standby Feature due to inactivity saves battery power
• 1300 Measurement storage in memory
• Bluetooth communication with included DataView software
• Complies with International Insulation Testing Standards including IEC/EN 61557
• 600V CAT IV
• Optional Remote Probe accessory

Applications:

• Insulation measurement on communication cables, Ethernet cables and other low voltage AC and DC wiring
• Insulation measurement on electronic components and circuits
• Special applications in the aerospace and defense sectors where specified test voltages are required
• Cables, small motors, pumps, transformers and industrial equipment
