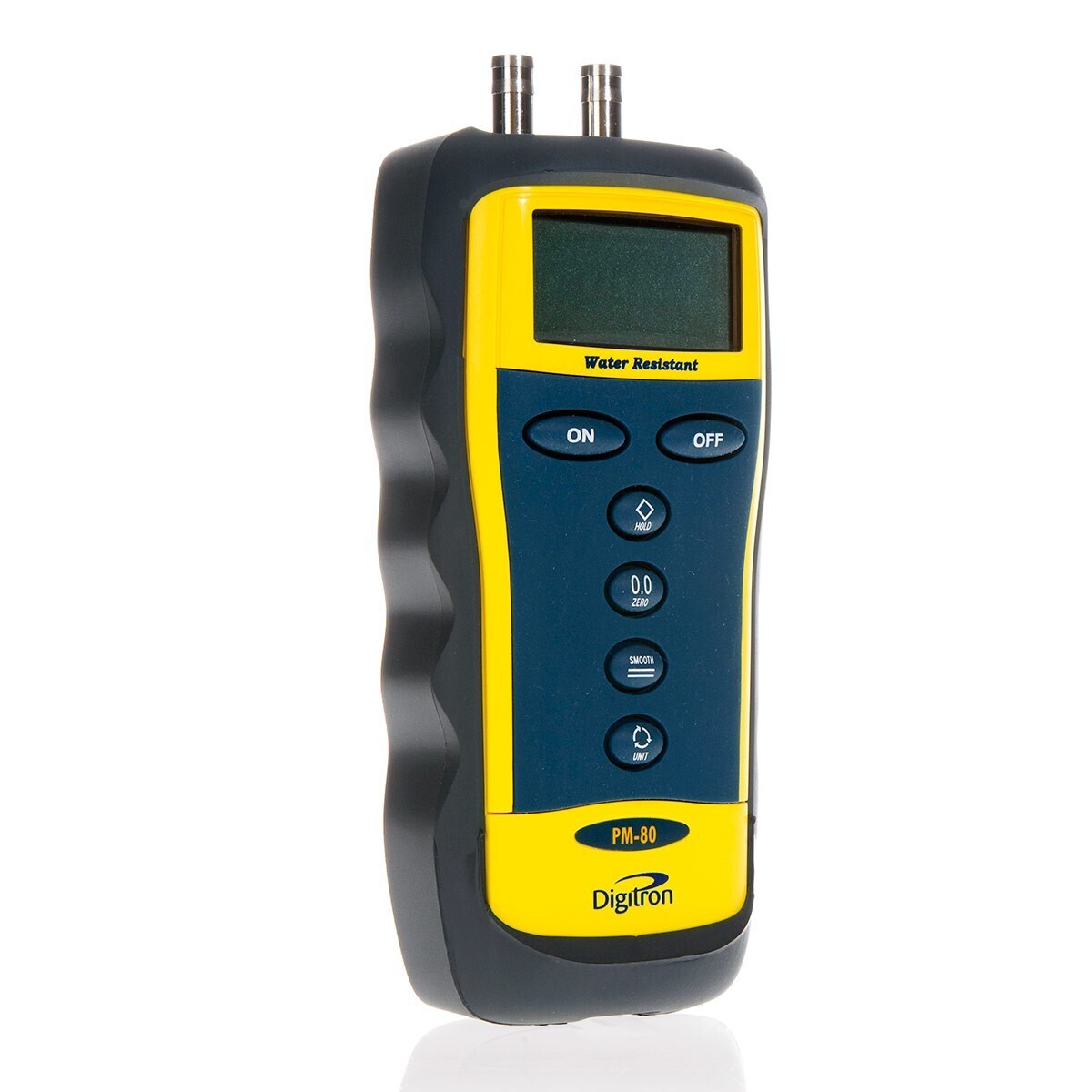

Using measurement technology developed from the 2000 Series the PM range offers good performance at an affordable price. The PM-80 offers additional features from the PM-20, including fully selectable measurement ranges and a smoothing function for stable readings.

Specifically designed for engineers using twin tube connections, the PM range is ideal for soundness testing and setting up boiler differential gas pressures. Manufactured from tough ABS plastic, this water-resistant instrument is supplied with a rubber boot to provide added protection during routine use. It can be magnetically attached for ease of use, and the back lit LCD allows easy viewing of the display in poor light conditions.

The PM series is a suitable replacement for the conventional U-tube, having a fast response coupled with high accuracy and at low cost.

Specifically developed to meet the performance and cost demands of today's HVAC professional.

Instruments are available with alternative pressure measurement units as factory set options or as a selectable option on the PM-80 which also incorporates a smoothing function.

Features:

  • Specifically developed to meet the performance and cost demands of today's HVAC professional
  • Differential Input - 8mm tube connectors
  • Water Resistant (IP67 rated)
  • Rugged case with protective rubber boot
  • Magnetic attachment or tilt stand
  • Push button “Zero” and “Hold” features
  • Backlit Digital Display
  • Auto Power Off after 12 minutes
  • 0-130 mbar measurement range
  • 0.01 resolution up to 19.99 mbar, then auto switches to 0.1 resolution
  • Selectable Measurement unit option
  • Smoothing Function
